Ultra Precision Bed Type Milling machine
100% Made In Taiwan
Features:
1. 1HP B.L.D.C Motor (Brushless DC motor)

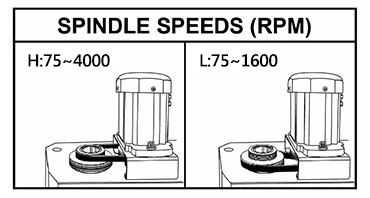

2. 2 speed Variable Speed 75~4000rpm.
3. The drill capacity for cast iron is 19mm, and for steel is 16mm
4. Face mill cutter : 3 ”, end mill cutter 1”.
5. Combined Stand with metal leveling pads is dismountable type to save the shipping space
6. Table load 90-100kg
7. BM728 is able to modify to NC type Ball screw kit and adaptor board are optional accessories for NC modification.
8. Machine Voltage only available with 240V /50HZ/1PH.
9. Container Load:
40FT container load: 90 SET + 60 Stands
20FT container load : 39 SET + 20 Stands
20FT container load: 36 SET + 32 Stands
10. Quill Travel scale with LCD display
11. Power Table Feed
Easy to install, no modification needed.
Highest quality design and construction materials.
Strengthened "ZYTEL GEAR", and extra unit to be attached free of charge (for AL-500D only).
Safe design operation stable low noise.
Long life span designed.
Specification:
|
MODEL |
BM728 |
|
Spindle Travel |
3" (75mm) |
|
Max Distance Spindle to Column |
8 1/2" (216mm) |
|
Max Distance Spindle to Table |
16 1/4" (412mm) |
|
Longitudinal Table Travel (X-Axis) |
17 3/4" (Max. 19" (450mm Max.482) |
|
Cross Table Travel (Y-Axis) |
8.5" Max. 10" (216mm Max.254 ) |
|
Vertical Head Travel (Z-Axis) |
16" (406mm) |
|
Head Tilt (Left/Right) |
Right 90, Left 90 deg. |
|
Drilling Capacity for Steel |
3/4" (19mm) |
|
Table Size |
7" x 28" (177mmx710mm) |
|
Table Thickness |
2 1/8" (54mm) |
|
Number of T-Slots |
3 |
|
T-Slot Size |
12mm |
|
Spindle Taper |
R8 or NT30 |
|
Range of Vertical Spindle Speeds |
75~4000 RPM |
|
Quill Diameter |
2.362" (60mm) |
|
Drawbar Thread Size |
7/16 – 20 TPI |
|
N.W./G.W. |
154/188 kgs |
*All specifications above are subject to change without notice.
